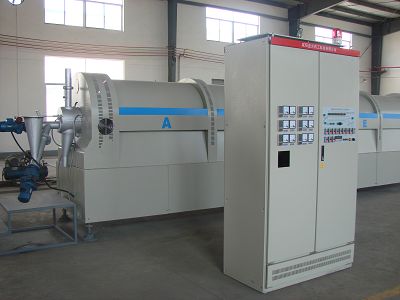

WX系列回转炉
 点击数:3752次 添加时间:2014-06-23 [关闭] [收藏]


WX series rotary furnace




用途:粉体材料、颗粒材料的烘干及焙烧,广泛应用于化工、磁材、冶

金、锂电及其他新型材料工业.

特点:控温精度高,自动化程度高,低能耗、高产出、污染小 ,连续化生。

使用温度:100℃—1200℃

可选:气氛保护。



Usage: drying and calcinations of powder materials, particulate material, which is widely used in chemical, magnetic, metallurgy, lithium and other new materials industry.

Features: high temperature control precision, high automation degree, low energy consumption, high output, low pollution, continuous production.

Operate temperature: 100 ℃~1200 ℃

Optional: atmosphere protection.



主要技术参数The main technical parameters

    型号Type

               参数Parameter



WX100



WX260



WX350



WX500



WX800



WX1000



WX1200



WX1600

额定温度Rated Temperature

                            1100℃

回转管尺Rotary Tube Size

Ø100/ Ø116

×3000mm

Ø257/ Ø273

×7000mm

Ø350/ Ø370

×9200mm

Ø500/ Ø520

×10300mm

Ø800/ Ø824

×10500mm

Ø1000/ Ø1028

×11000mm

Ø1200/ Ø1232

×12000mm

Ø1600/Ø1636

×12000mm

窑体倾角Kiln Dip Angle

0.5°-4.5°可调

 生产率Productivity

~16kg/h

~80kg/h

~120kg/h

~200kg/h

~480kg/h

~750kg/h

~1000kg/h

~1600kg/h

空载损耗Open Circuit Losses

~8KW

~30KW

~60KW

~100KW

~160KW

~200KW

~260KW

~350KW

额定功率Rated Power

20KW

80KW

120KW

200KW

360KW

420KW

520KW

650KW

 电   源Power Source

380V/50HZ



外形尺寸

Outline Size

(mm)

3500 L

1600 W

2300 H

8000 L

1800 W

2500 H

10000 L

1800  W

2500  H

11700 L

2000 W

2600 H

12000 L

2550 W

2700 H

12500 L

2900 W

3000 H

14000 L

3100 W

3300 H

14000 L

3500 W

3800 H

 重  量Weight

2T

7T

10T

15T

25T

38T

45T

55T



可根据客户要求进行特殊设计
