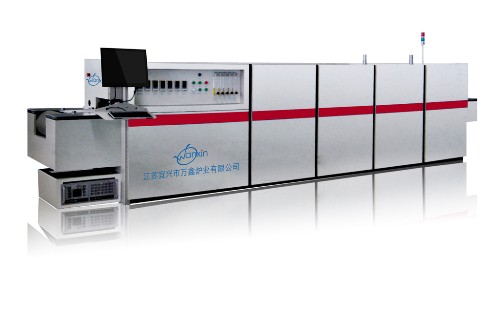

DM系列网带烧结炉
 点击数:2175次 添加时间:2016-08-10 [关闭] [收藏]







DM series mesh belt drying oven

用途:主要用于电子陶瓷基片的烘银、烧银。也可用于其它材料的烧成。

特点:DM系列隧式网带烘干炉变频无极调速,不锈钢网带传送,全新的大包角设计理念,确保了产品平稳输送。

使用温度:100℃—900℃



Usage: it is mainly used for the bake silver and burning silver of electronic ceramic substrate. It can also be used for the firing of other materials.

Features: Dm series tunnel mesh belt dry furnace has frequency conversion step-less speed, stainless steel mesh belt transmission with the new design concept of the large wrap angle, so it can ensure the smooth delivery of the products.

Operate temperature: 100 ℃~900 ℃

主要技术参数The main technical parameters



型号

Type

炉膛尺寸

Furnace Size

(L*W*H)mm

最高工作温度

The Maximum Operating Temperature

(℃)

炉温均匀度

Furnace Temperature Uniformity

(≤±℃)

控温组数

Number of Temperature Control Group

装机功率

Installed Power

(KW)

DM型烘银

DM Type Bake Silver

3500*400*50

          400

             2

     3

          18

DM型烧银DM Type Burning Silver

5500*400*80

          800

             3

     5

          36

DM型预烧DM Type Pre-burning

20000*800*180

          850

             3

    12

         120

可根据客户要求进行特殊设计 It can be designed according to customer specific circumstances
