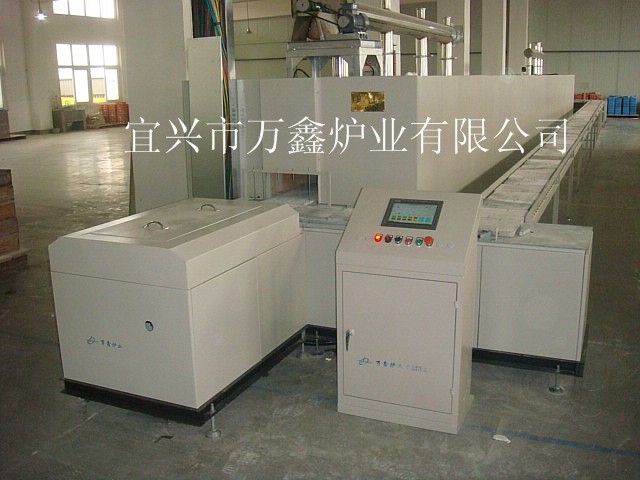

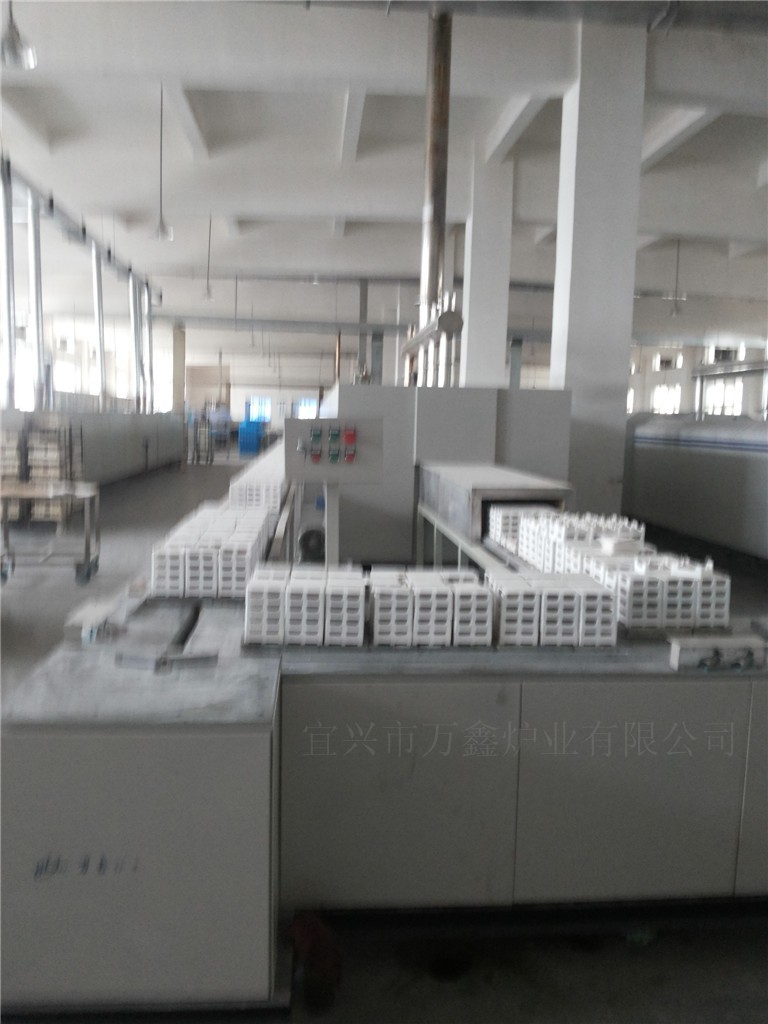

TZL automatic series single hole single push plate tunnel resistance furnace
用途:PTC、稀土、压电陶瓷制品、磁性材料、氧化铝、电子陶瓷等的烧成。
特点:PLC全自动控制操作简单易懂省人工,余热利用可减少5%的用电量。
选件:全棉炉膛、计算机控制、循环道、推进(液压或者机械)。
使用温度:100℃—1400℃
Usage: the firing of PTC, rare earth, piezoelectric ceramics, magnetic materials, aluminum oxide, electronic ceramics and other products.
Features: PTC automatic control, the operation is simple and easy to understand, laborsaving, the utilization of waste heat can reduce by 5 % of electricity consumption.
Option: cotton hearth, computer control, loop road, propulsion (hydraulic or mechanical).
Operate temperature: 100 ℃~1400 ℃
主要技术参数The main technical parameters
型号 Type | 炉膛尺寸 Furnace Size (L×W×H)mm | 设备尺寸 Equipment Size (L×W×H)mm | 装机功率 Installed Power (KW) | 控温组数
(温区) | 常用工作温度 Common Operating Temperature (℃) | 加热元件 Heating Element | |
TZL-150-13 | 16000×450×200 | 22000×3500×1700 | 150 | 10 | 1350 | 硅碳棒 Silicon Carbide
| |
TZL-200-13 | 24000×480×160 | 28000×3500×1700 | 200 | 12 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-150-13 | 15000×410×155 | 18000×2600×1850 | 150 | 9 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-130-13 | 13500×400×180 | 16500×2600×1700 | 130 | 9 | 1350 | 硅碳棒 Silicon Carbide | |
TZL-100-13 | 12500×400×155 | 18000×2800×1700 | 100 | 8 | 1350 | 硅碳棒 Silicon Carbide |
可根据用户要求进行特殊设计
It can be specially designed according to users’ requirements
