TGME系列升降炉
 点击数:4044次 添加时间:2014-07-01 [关闭] [收藏]

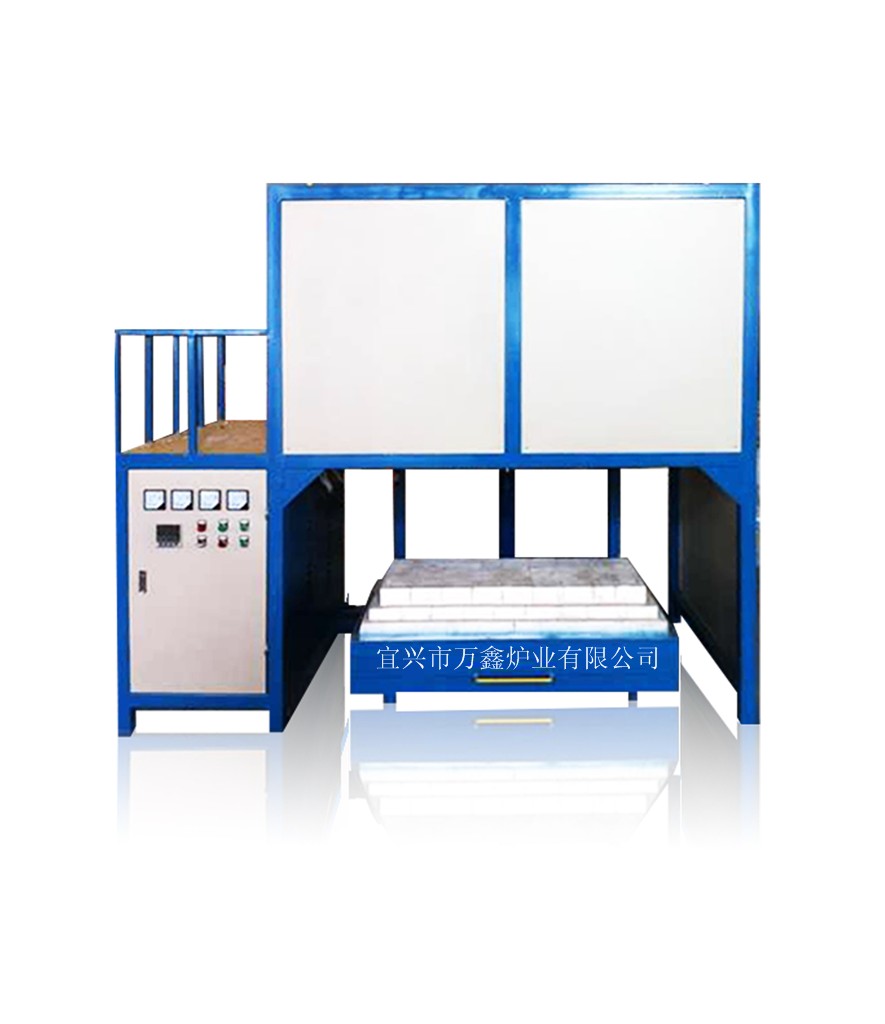

TGME series lifting furnace



用途:用于陶瓷制品、二氧化锆制品等产品的高温烧结



特点:高效、均匀、节能、环保



选件:炉膛可采用空心球、刚玉、棉



使用温度:100℃—1700℃



Usage: It is used for the high-temperature firing of ceramic article, zirconia products and other products.

Features: Efficient, uniform, energy saving, environmental protection.

Option: The furnace can use hollow ball, corundum and cotton

Operate temperature: 100 ℃~1700 ℃



主要技术参数The main technical parameters

型号Type

   炉膛尺寸

Furnace Size

(L×W×H)mm

   设备尺寸

Equipment Size

(L×W×H)mm

装机功率

Installed Power



 (KW)

常用工作温度

Common Operating Temperature

(℃)

加热元件

Heating Element

TGME-36-16

800×350×500

1600×1150×2200

   36

   1600

硅钼棒

TGME-30-17

400×400×400

1500×1500×2100

   30

   1700

硅钼棒

TGME-100-17

1500×500×500

2500×1200×2600

    100

   1700

硅钼棒



 可根据用户要求进行特殊设计It can be specially designed according to users’ requirements
