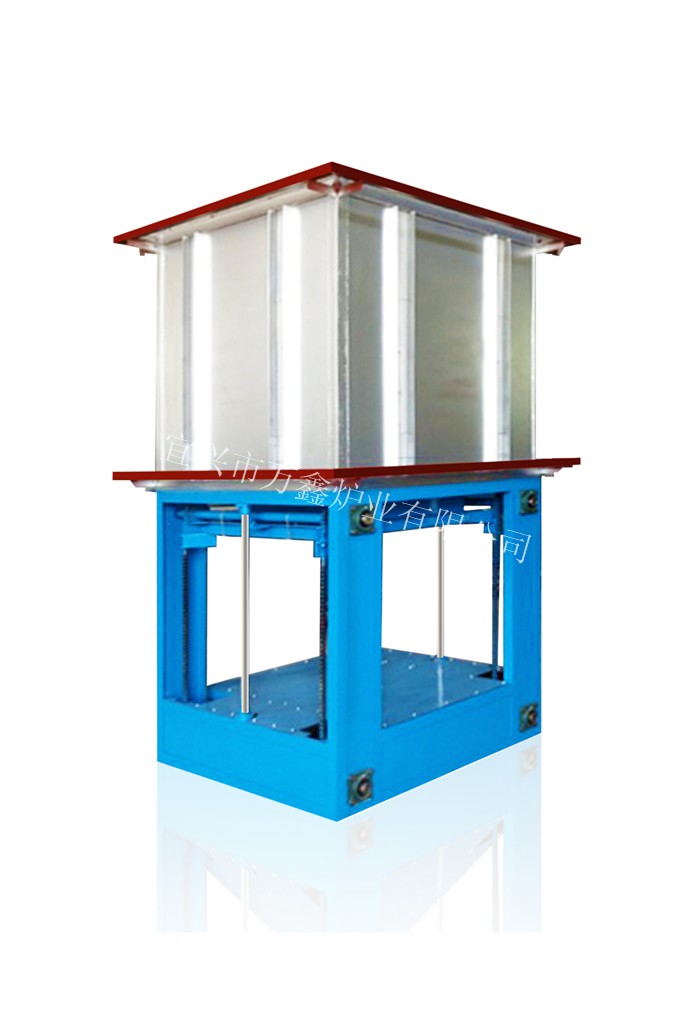

ZGTE系列升降炉
 点击数:1821次 添加时间:2014-07-01 [关闭] [收藏]

ZGTE series lifting furnace



用途:专用于微波铁氧体、磁性材料、电子陶瓷、电子元件等的预烧、烧结。



特点:全陶瓷纤维炉膛,高效、均匀、节能、环保。



使用温度:100℃—1600℃

 Usage: it is designed for the pre-burning and firing of microwave ferrite, magnetic material, electronic ceramics, electronic components, etc.

Features:full ceramic fiber furnace,efficient ,uniform,energy saving and environmental protection.

Operate temperature:100℃—1600℃

主要技术参数

The main technical parameters



型号

Type

   炉膛尺寸

Furnace Size

(L×W×H)mm

   设备尺寸

Equipment Size

(L×W×H)mm

装机功率

Installed Power

(KW)

常用工作温度

Common Operating Temperature

(℃)

加热元件

Heating Element

ZGTE-100-13

1000×1000×1000

2000×2000×2700

   100

   1300

硅碳棒

ZGTE-50-13



1000×500×500



2000×1400×2300



   50



   1300



硅碳棒





可根据客户具体情况设计定做

It can be designed according to customer specific circumstances
